moving table double horizontal compound machine
HH500
Y1/Y2 axis travel: 550mm
Z1/Z2 axis travel: 500mm
Workbench size: 1000×500mm
Workbench maximum load capacity: 800KG
Spindle speed I/II: 8000r/min
CNC control system: Fanuc M5/Datan R5
Keyword:
· Reasons to choose us ·
Excellent qualifications and abilities
DATAN CNC is a national high-tech enterprise, a national torch plan undertaking enterprise, and a national innovation fund undertaking enterprise; it has a high-efficiency composite R&D center in Zhejiang Province, and has undertaken three national-level scientific and technological projects and three provincial and municipal major scientific and technological projects in recent years. Possess dozens of patented technologies
Reliable product quality
The production and sales system is perfect, and the product quality is reliable. There is a professional marketing team and a perfect after-sales service system.
mailbox：tyler@hzdtsk.com
After-sales service is guaranteed
There are 18 technical service specialists: distributed in Shandong, Anhui, southern Jiangsu, northern Jiangsu, Shanghai, Wenzhou. Taizhou, Ningbo, Jinhua, Hangzhou and other 13 offices. Each technical service specialist is selected from all positions in the workshop and has at least 10 years of professional skills in machine tool debugging and electronic control. Moreover, the technical service specialists in Jiangsu, Zhejiang and Shanghai are equipped with special service cars to ensure service timeliness.
Sufficient production experience
Large day control: intelligent and efficient composite machine tool brand
The founder has 50 years of production technology accumulation, providing intelligent precision, high speed and high precision, powerful and efficient, five-axis linkage machine tools
mailbox：tyler@hzdtsk.com
- 产品介绍
-
- Commodity name: moving table double horizontal compound machine
- Commodity ID: HH500
X-axis travel: 1000mm<br> Y1/Y2 axis travel: 550mm<br> Z1/Z2 axis travel: 500mm<br> Workbench size: 1000×500mm<br> Workbench maximum load capacity: 800KG<br> Spindle speed I/II: 8000r/min<br> CNC control system: Fanuc M5/Datan R5
Specification (with units in parentheses)
travel
X aixs-1000(mm)，Y1/Y2aixs -500(mm)， Z1/Z2aixs-500(mm)；
worktable
size-1000x500(mm),Max.loading：800KG
trapid feed rate G01-10-8000(mm/min)，G00-24(m/min)； spindel tapeBT40,speed8000(rpm)
tool magazine 2Xtool magazine 24(pcs), others product details

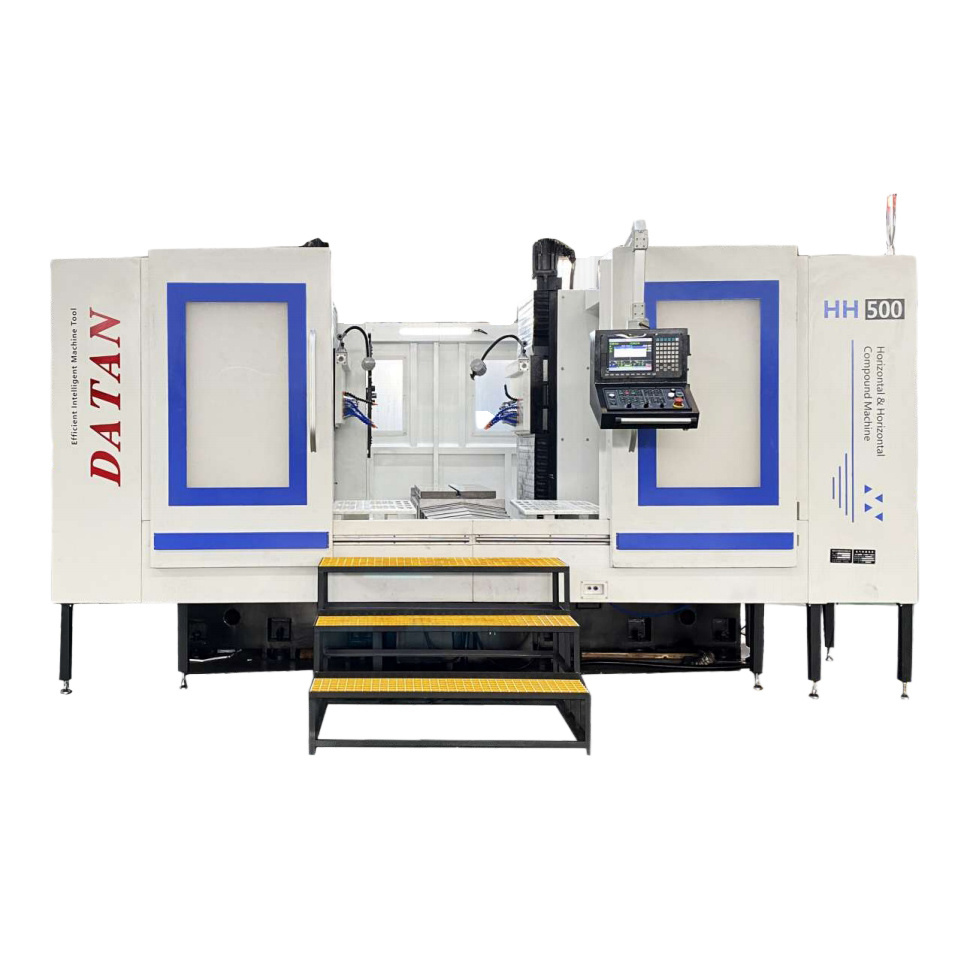

HH500 moving table double horizontal compound machine
-
High investment return rate
-
Saves floor space
-
Flexible processing strength
-
Box-type high-efficiency processing tool
moving table double horizontal compound machine
It is mainly applied to achieve efficient multi-face processing for box-shaped parts, structural components, and irregular-shaped parts, etc.
Based on the rotational requirements of the workpiece, its weight, size and the rotational division angle, select the type of division for the turntable.
(0.001° per 1°). Additionally, it is equipped with a dual-channel control system, which enables efficient simultaneous processing on both sides.
The system can be configured with brands such as Fanuc, Mitsubishi, Siemens, and Xindai Numerical Control, etc. This leads to an increase in efficiency.Save time / save money / save space
Composing multiple machining centers, the floor space has been reduced by 40% compared to before.
Efficient, precise, and highly flexible.
-
High efficiency: Elimination of auxiliary time for multiple clamping operations
-
High precision: Elimination of positioning errors caused by multiple turns
-
High flexibility: Completing multi-face flexible processing with a single setup

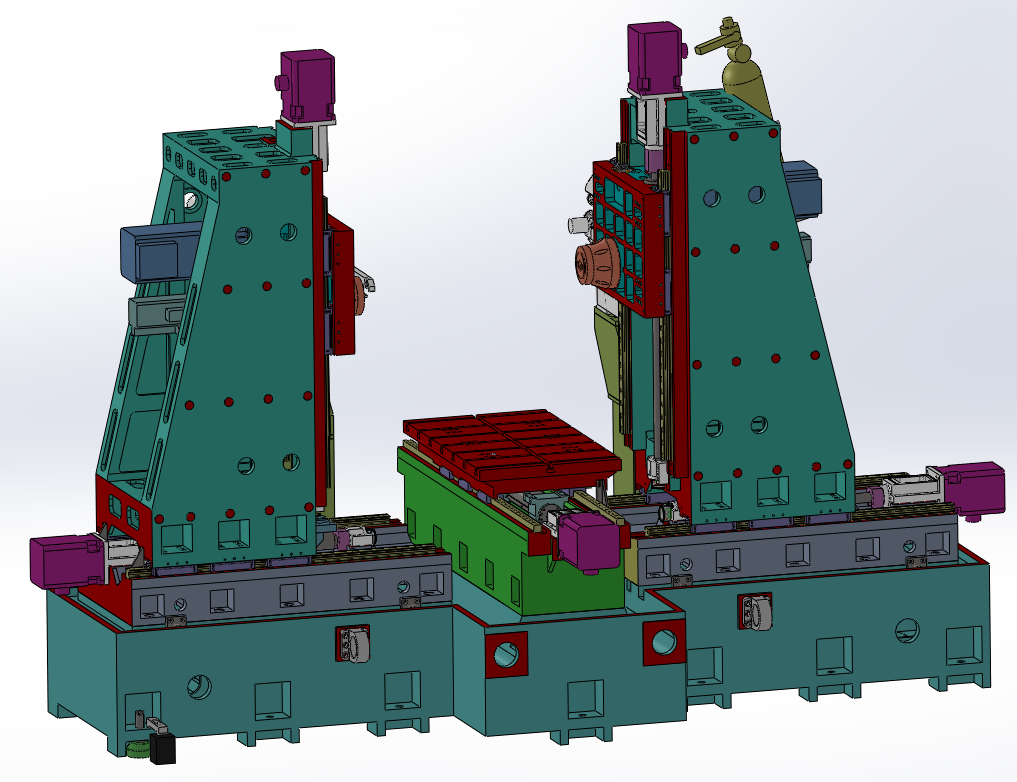

machine structure
The entire body is designed in a neat manner, with the five major components having a reasonable structure. They are combined to create stable performance. The body is made of high-quality HT300 cast iron, ensuring high rigidity while also having good vibration absorption properties.
The superior performance lies in every component of the aircraft's design.
Each component has been meticulously designed and calculated to achieve excellent structural rigidity. It has also been manufactured and verified numerous times, ultimately enabling the manufacturers to understand the requirements for rigidity and precision, and meeting the vast majority of user scenarios.
Details determine success or failure. Practical, reliable, and beautiful.
Every detail has been meticulously designed by the technicians, not only to meet the usage requirements but also to be elegant and grand. The assembly workers will strive to make every aspect perfect.
规格参数(括号内为单位)
travel
X aixs-1000(mm)，Y1/Y2aixs -500(mm)， Z1/Z2aixs-500(mm)；
worktable
size-1000x500(mm),Max.loading：800KG
trapid feed rate G01-10-8000(mm/min)，G00-24(m/min)； spindel tapeBT40,speed8000(rpm)
tool magazine 2Xtool magazine 24(pcs), others 产品详情
